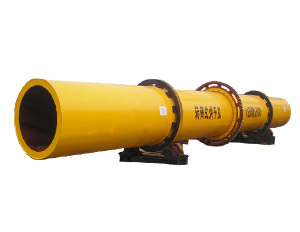

Rotary Dryer

Application:

Rotary dryer is used for drying materials with humidity or granularity in the industries of mineral dressing, building material, metallurgy and chemical. It can be used for drying many kinds of materials limestone slag, coal powder, slag, clay stone. And it formed by rotary body, lifting blade, driving device, supporting device and sealing ring.

Features：

The dryer has advantages of reasonable structure, high efficiency, low energy consumption and convenient for transportation, and convenient and reliable operation ; Therefore, the consumption of the coal and the electricity is lower than the common ones, while the production capacity is higher than 10-15％.The operation is very simple and liable For this reason and it is used widely.

Main technical parameter：

model (m)	diameter (m)	length (m)	gradient	rotate speed (r/m)	weight	power	volume(M3)
φ0.6×8	φ600	8	3-5	8	5.1	6-4	2.26
φ0.8×10	φ800	10	3-5	7.2	6.9	6-4	5.02
φ1.0×10	φ1000	10	3-5	6.73	7.5	6-5.5	7.85
φ1.2×12	φ1200	12	3-5	5.8	13.1	6-11	13.31
φ1.5×12	φ1500	12	3-5	4.8	22.3	6-15	21.2
φ2.2×14	φ2200	14	3-5	3.2	52.8	30	53.22
φ2.4×18	φ2400	18	3-5	3	73.3	37	81.43
φ2.8×24	φ2800	24	3-5	2.59	97	75	147.8

Note: The technical parameters above are just for your reference. If there is any change, all parameters and overall dimension are subject to operating instructions. Any questions please feel free to contact us.
