Fine crusher/Fine grinding machine/crusher machine

The Current Position：Home>>Products>>Brief Introduction

Fine crusher

Features:

1. High ratio to get products
2.Warranty: quality certificate
3.Large capacity
4.Easy maintenance

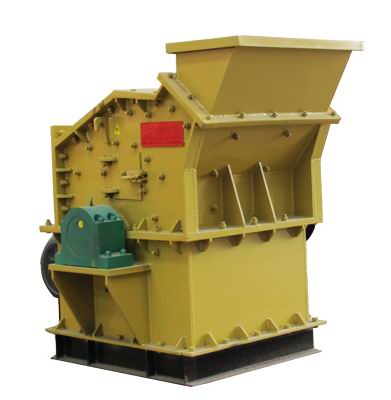

High Efficiency Fine Sand Crusher, Sand Maker

This kind of High Efficiency Fine Crusher is made for granite, limestone, cement, iron ore, basalt, and ricer stone crushing, of excellent rigidity, simple structure and easy-maintenance, widely applied for the construction of road, bridge, expressway, airport, metallurgy etc.

Working principle of Sand Maker

The material is crushed primarily in the first crushing chamber by the high speed moving rotator against the hammer, and then screwed into the secondary chamber for fine crushing hereafter material being discharged.

Technical parameters of Find Sand Crusher:

Model	Feeding size(mm)	Discharging size(mm)	Capacity (t/h)	Electric power(kw)	Weight (t)
PCX800×300	≤60	≤5(96%)	20-25	37	2.5
PCX800×600	≤60	≤5(94%)	35-50	45	4.7
PCX800×800	≤70	≤5(92%)	40-60	75	6.5
PCX1000×1000	≤80	≤5(91%)	60-90	90	8.8
PCX1000×1200	≤90	≤5(88%)	75-110	110	13.6
PCX1300×1200	≤100	≤5(86%)	120-145	160	19.5
PCX1300×1400	≤120	≤5(85%)	145-180	180	26

Note: The technical parameters above are just for your reference. If there is any change, all parameters and overall dimension are subject to operating instructions. Any questions please feel free to contact us.
