Spiral chute/high quality spiral chute in mining

The Current Position：Home>>Products>>Brief Introduction

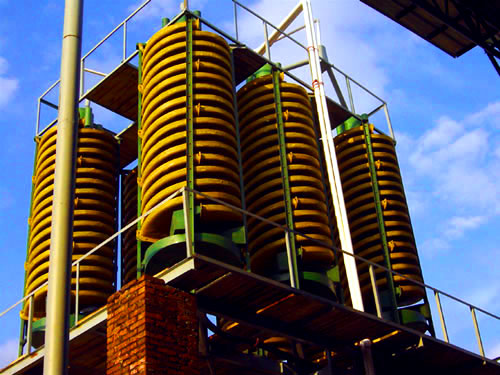

Spiral chute

Features:
1-Simple structure
2-Eeasily to operate
3-Reliable opetation
4-Save space, high capacity

YuHui Spiral Chute--gracity separator can be used for tin ore selection, our engineers can design suitable mineral seperating lines according to information you offered

Spiral chute application:

This applies to sorting size 0.3 - 0.02 mm thin materials of iron ore, ilmenite, chromite, pyrite, zircon, rutile, monazite, P B ore, tungsten ore, tin mine, tantalum and niobium mine, as well as other non-ferrous metals. Precious metals and non-metallic mineral with the proportion differences.

Advantage of spiral chute:

The process of sorting equipment is stable, easy to control, to allow changes in the thickness of ore concentration, concentration is high, high recovery, small footprint, less water consumption, simple structure, no driving force, big capacity, simple to install, convenient operation, small investment and so on advantages.

Technical data of spiral chute:

Model		5LL-1200	5LL-900	5LL-600	5LL-400
External diameter(mm)		1200	900	600	400
Screw distance(mm)		900/720/540	675/540/405	450/360/270	240/180
Ratio(scroll distance/diameter)		0.75/0.6/0.45	0.75/0.6/0.45	0.75/0.6/0.45	0.6/0.45
Transverse obliqiuty		9^o	9^o	9^o	9^o
Max. scroll buckets for each machine		4	4	3	2
Feeding granularity(mm)		0.3-0.03	0.3-0.03	0.2-0.02	0.2-0.02
Feeding thickness(%)		25-55	25-55	25-55	25-55
Capacity(t/h)		4-6	2-3	0.8-1.2	0.15-0.2
Dimensions	Length(mm)	1360	1060	700	460
	Width(mm)	1360	1060	700	460
	Height(mm)	5230	4000	2600	1500
Weight(kg)		600	400	150	50

Note: The technical parameters above are just for your reference. If there is any change, all parameters and overall dimension are subject to operating instructions. Any questions please feel free to contact us.
